악세사리Solenoid Valve
솔레노이드 밸브

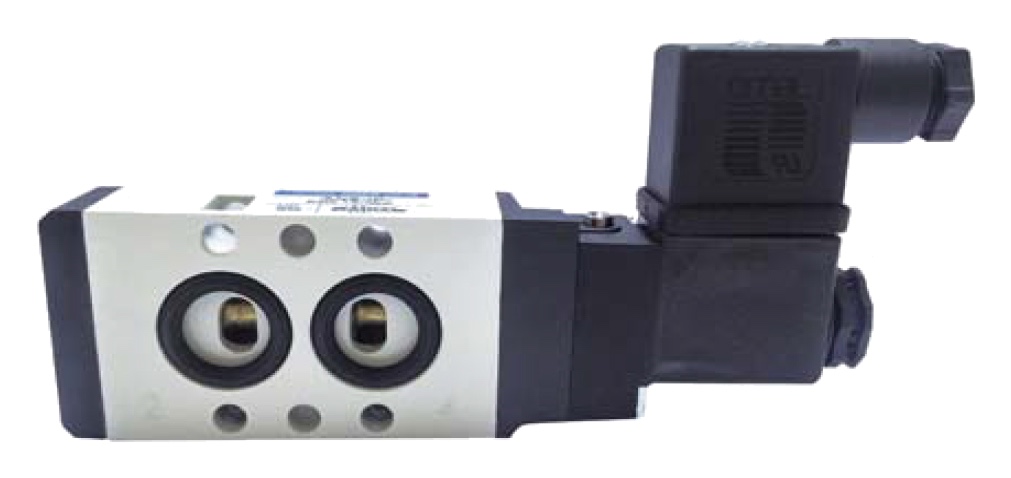

ANS / ESV 시리즈 솔레노이드 밸브
적용 분야
- 공압 자동 볼밸브·버터플라이밸브 구동
- 방폭 환경 공압 제어 시스템
- 화학·석유화학 플랜트 배관 자동화
- 수처리 및 식음료 공정 제어
- 일반 산업 설비 공압 제어
Specification

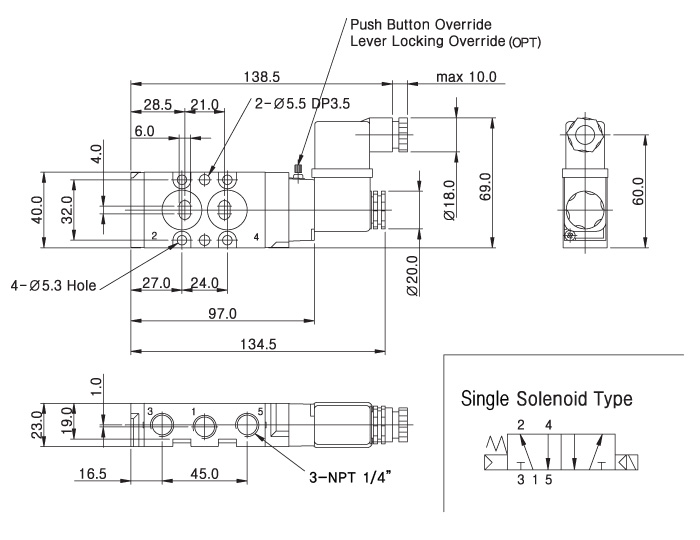

* ANS / ANS-D Series
| Model | ANS (Single Coil) | ANS-D (Double Coil) |
|---|---|---|
| Fluid | Air & Inert Gas | |
| Pressure (Bar) | 1.5 ~ 10.0 | 2.0 ~ 10.0 |
| Ambient Temperature | 5℃ ~ 60℃ | |
| Response Time (at 5 Bar) | 30ms below | |
| Lubrication | Not required | |
| Rated Voltage | AC110V, 220V (50/60Hz), DC24V | |
| Coil Insulation | ±10% | |
Specification

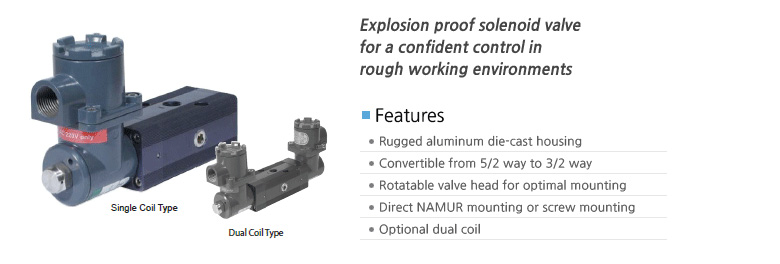

* ESV Series
| Model | ESV |
|---|---|
| Operating Air Pressure | 1.5 ~ 10kgf/㎠ |
| Air Supply (Max.) | 15 kgf/㎠ |
| Operating Voltage : Current | AC 110V : 55mA AC 220V : 17mA |
| Voltage Tolerance | DC 24V : 138mA |
| Frequency | ±10% |
| Explosion Proof Class | 50Hz / 60Hz Exd IIC T6 |
| Operating Ambient Temperature | -20℃ - +60℃ |
| Flow Capacity (Cv) | 0.9 |
| Mounting Configuration | NAMUR or screw interface |
| Pneumatic Connections | PT 1/4 or NPT 1/4 |
| Electrical Connection | PF 1/2 or NPT 1/2 |
| Coil Insulation Grade | Class F |
| Duty Cycle | 100% |
| Weight | 0.9kg |
| Silencers | 2 pcs included as standard |

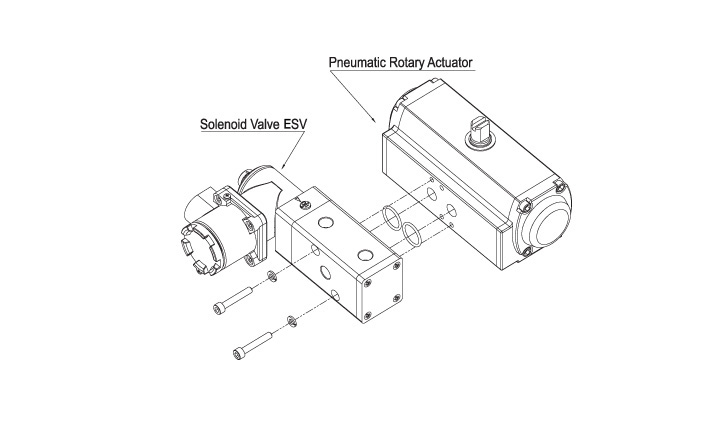

Mounting

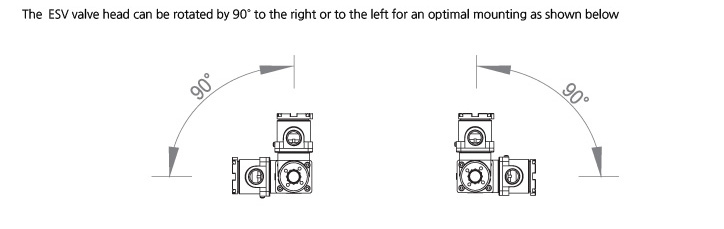

Rotatable Valve Head

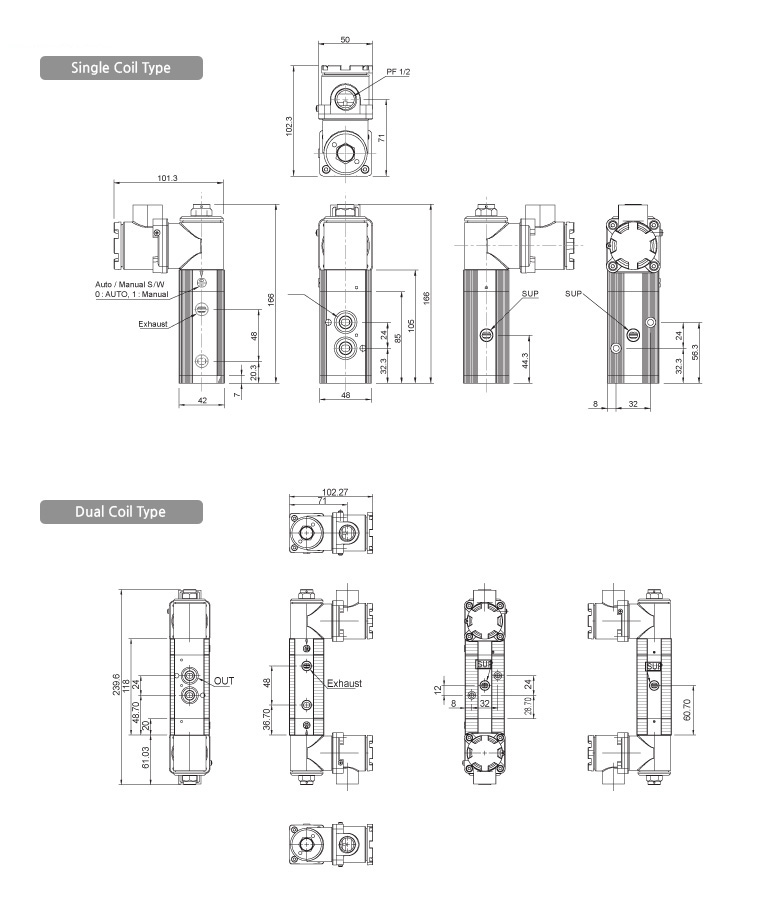

Dimension
