전동 구동기Linear Type Actuator
리니어 타입

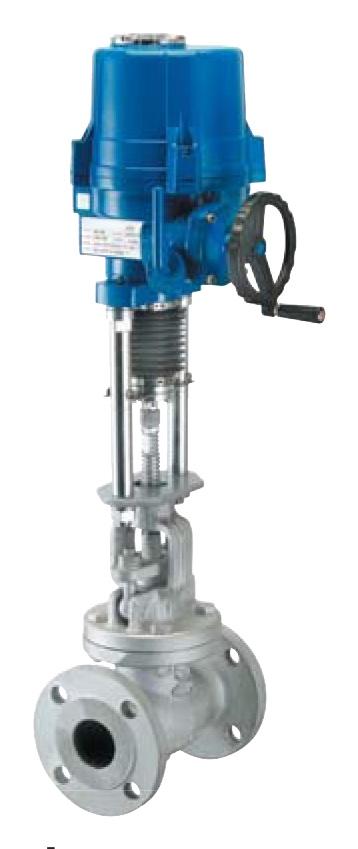

AQL 시리즈 리니어 타입 전동 구동기
적용 분야
- 글로브 밸브 자동화 배관 설비
- 게이트 밸브 자동화 설비
- 다이어프램 밸브 자동화 설비
- 수처리 및 화학 플랜트 배관
- 발전소 및 산업용 자동화 설비
- 원격 위치 제어가 필요한 프로세스 라인
Technical Information
| Model | Max. Force | Max. Stroke | Speed 50/60Hz | Rated Current(A) | Valve Stem Threads | PCD on Flange | Pillar Threads | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50/60Hz | ||||||||||||
| KN | mm | mm/sec | 1 Phase | 3 Phase | DC | mm | mm | kg | ||||
| 110V | 220V | 380V | 440V | 24V | ||||||||
| AQL04 | 4 | 40 | 0.7/0.9 | 0.45/0.44 | 0.26/0.25 | 0.30/0.31 | 0.28/0.40 | 3.00 | Max. M20 | 100 | M16 | 7 |
| AQL06 | 6 | 60 | 0.7/0.9 | 0.49/0.48 | 0.29/0.28 | 0.32/0.33 | 0.30/0.42 | 3.50 | Max. M20 | 100 | M16 | 8 |
| AQL08 | 8 | 50 | 0.9/1.1 | 0.92/0.88 | 0.48/0.46 | 0.18/0.17 | 0.17/0.16 | 2.90 | Max. M20 | 100 | M16 | 15 |
| AQL10 | 10 | 50 | 0.9/1.1 | 0.95/0.91 | 0.50/0.48 | 0.19/0.18 | 0.18/0.17 | 3.20 | Max. M20 | 100 | M16 | 16 |
| AQL12 | 12 | 50 | 0.9/1.1 | 0.98/0.94 | 0.52/0.50 | 0.20/0.19 | 0.19/0.18 | 3.50 | Max. M20 | 100 | M16 | 16 |
| AQL20 | 20 | 100 | 0.9/1.1 | 1.75/1.68 | 0.93/0.89 | 0.30/0.30 | 0.32/0.31 | 6.00 | Max. M24 | 165 | M20 | 20 |
| AQL25 | 25 | 100 | 0.9/1.1 | 1.80/1.72 | 0.95/0.92 | 0.32/0.32 | 0.34/0.33 | 7.00 | Max. M24 | 165 | M20 | 21 |
Standard Specification
| Manual Override | Handwheel with switchable declutchable lever |
| Enclosure (EN60529) | IP67 |
| Cable Entry | 2 x PF 3/4" TAP |
| Position Indication | Scale on pillar pointed by indicator |
| Housing | Aluminum alloy hard anodized for anti-corrosion |
| Painting | Epoxy power coated |
| Ambient Temperature | -20℃ ~ +70℃ |
| Operating Mode (EC34-1, 8) | S2-Max. 30 Min / S4-50% ED, 800 c/h / S4-50% ED, 1200 c/h |
| Motor Protection | Thermal Switch, Class F Insulation |
| Space Heater | 5W (110/220VAC) for anti condensation |
| Limit Switch | 1 each for open/close (SPDT 10A 250VAC rating) |
| Mounting Direction | Any direction except for heading downward |
| Pillar Material | Stainless steel, carbon steel with special surface treatment |
Options Available
| Available Optional Control | ||
|---|---|---|
| - Auxiliary limit switch | ALS | 1 each for open/close (SPDT 10A 250VAC rating) (Except for AQL04/AQL06) |
| - Remote position control | RPC | 4~20mA input/output, Selectable other signal |
| - Potentiometer | PK | 0~1Kohm feedback |
| - Current transmitter | CT | 4~20mA output |
| Local control | ||
| - Local control (1 Phase) | LP4 | Local control unit |
| - Local control (3 Phase) | LM4 | LP4 with reversing contactor and transformer |
| - Integral unit | ICM | Local controller with phase detector / discriminator |
| - Battery back up unit | BP | Fail Safe (Fail position either open/close) |
| - Explosion proof | EX | Exd IIB T4 |
