쿼터 턴 타입 전동 구동기 (ATM Series)
적용 분야
- 볼 밸브 자동화 배관 설비
- 버터플라이 밸브 자동화 설비
- 플러그 밸브 자동화 설비
- 수처리 및 화학 플랜트 배관
- 발전소 및 산업용 자동화 설비
- 원격 감시·제어가 필요한 프로세스 라인
Technical Information – Small ATM Series
* Rated current (A) 50/60Hz
| Model | Rated torque | Duty cycle | Oper. time 50/60Hz | Max bore size | Motor insulation | Rated current (A) 50/60Hz | No of turns | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1Phase | 3Phase | DC | ||||||||||
| Nm | % | 90˚ | mm | class | 110V | 220V | 380V | 440V | 24V | 90˚ | Kg | |
| ATM0020 | 25 | 50 | 11 | Ø9 x 9 | E | 0.45/0.44 | 0.26/0.25 | 0.03/0.31 | 0.28/0.40 | 3.0 | N/A | 1 |
| ATM0040 | 40 | 50 | 14/12 | Ø14 x 14 | E | 0.49/0.48 | 0.29/0.28 | 0.32/0.33 | 0.30/0.42 | 3.5 | 7.5 | 3 |
| ATM0080 | 80 | 50 | 16/14 | Ø17 x 17 | E | 0.92/0.88 | 0.48/0.46 | 0.18/0.17 | 0.17/0.16 | 2.9 | 7 | 7 |
Technical Information – Regular ATM Series
* Rated current (A) 50/60Hz
| Model | Rated torque | Duty cycle | Oper. time 50/60Hz | Max bore size | Motor insulation | Rated current (A) 50/60Hz | No of turns | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1Phase | 3Phase | DC | ||||||||||
| Nm | % | 90˚ | mm | class | 110V | 220V | 380V | 440V | 24V | 90˚ | Kg | |
| ATM0100 | 100 | 40 | 21/18 | Ø22 / Ø20 | F | 0.98/1.10 | 0.52/0.58 | 0.43/0.33 | 0.59/0.42 | 2.8 | 10 | 7 |
| ATM0160 | 160 | 30 | 26/22 | Ø25 / Ø23 | F | 1.60/1.70 | 0.85/0.90 | 0.30/0.30 | 0.30/0.32 | 1.8 | 12 | 15 |
| ATM0240 | 240 | 30 | 26/22 | Ø25 / Ø23 | F | 1.62/1.72 | 0.87/0.90 | 0.32/0.32 | 0.32/0.35 | 2.4 | 12 | 15 |
| ATM0350 | 350 | 30 | 31/26 | Ø40 / Ø34 | F | 1.75/1.68 | 0.93/0.89 | 0.30/0.30 | 0.32/0.31 | 3.8 | 14 | 20 |
| ATM0500 | 500 | 30 | 31/26 | Ø40 / Ø34 | F | 3.60/3.90 | 2.50/1.60 | 0.52/0.56 | 0.55/0.58 | 5.0 | 14 | 20 |
| ATM0800 | 800 | 30 | 39/32 | Ø48 / Ø40 | F | 3.90/4.20 | 2.05/2.20 | 0.82/0.88 | 0.82/0.88 | - | 17 | 25 |
| ATM1100 | 1100 | 30 | 39/32 | Ø48 / Ø40 | F | 3.90/4.30 | 2.15/2.30 | 0.84/0.90 | 0.84/0.88 | - | 17 | 25 |
| ATM2000 | 2000 | 30 | 59/50 | Ø75 / Ø64 | F | - | 2.95/3.15 | 1.5/1.8 | 2.3/2.2 | - | 13 | 42 |
| ATM3000 | 3000 | 30 | 59/50 | Ø75 / Ø64 | F | - | 3.75/3.85 | 1.6/2.0 | 2.5/2.4 | - | 13 | 42 |
Technical Information – Large ATM Series
* Rated current (A) 50/60Hz
| Model | Rated torque | Duty cycle | Oper. time 50/60Hz | Max bore size | Motor insulation | Rated current (A) 50/60Hz | No of turns | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1Phase | 3Phase | DC | ||||||||||
| Nm | % | 90˚ | mm | class | 110V | 220V | 380V | 440V | 24V | 90˚ | Kg | |
| ATM6000 | 6000 | 30 | 178/149 | Ø120 / Ø100 | F | - | 2.95/3.15 | 1.5/1.8 | 2.3/2.2 | - | 39 | 152 |
| ATM9000 | 9000 | 30 | 178/149 | Ø120 / Ø100 | F | - | 3.75/3.85 | 1.6/2.0 | 2.5/2.4 | - | 39 | 152 |
Standard Specification
| Enclosure | Weatherproof IP67, NEMA 4X and 6, O-ring sealed (ATM0020 & ATM0040 : IP66) |
| Main Power supply | 24VDC, 110/220VAC/1Ph/50/60Hz, 380/440VAC/3Ph/50/60Hz ±10%, (ATM0020 & ATM0040 : 1Phase) |
| Control power supply | 110/220VAC/1Ph/50/60Hz ±10% |
| Duty cycle (on-off) | S2 : 10min ~ 30min |
| Duty cycle (modulating) | S4 : 30 ~ 50%, 300 ~ 1200 start/hour |
| Motor | Squirrel cage induction motor |
| Limit switches | 2 each for open and close (SPDT 250VAC/10A rating) |
| Torque switches | 2 each for open and close (SPDT 250VAC/10A rating except for ATM0020/0040/0080/0100) |
| Stall protection/set temp. | Built in thermal protection, open 150℃ ±5℃, close 97℃ ±15℃ |
| Travel angle | 90˚ ± 5˚ (0℃ ~ 100℃) |
| Position indicator | Continuous mechanical indicator with arrow |
| Manual override | De-clutchable (except for ATM0020 : N/A, ATM0040 : by shaft, ATM0080 : by wrench) |
| Self locking | Provided by double worm gearing (no brake) (except for ATM0020/0040/0080) |
| Mechanical stopper | 1 each for each travel end (open and close), external adjustable (except for ATM0020/0040) |
| Space heater | 5W (110/220VAC) for anti condensation |
| Cable entries | 2-PF3/4" TAP except for ATM0020 : 1-PG11, ATM0040 : 2-PG13.5, ATM0080 : 2-M20X1.5 |
| Lubrication | EP type grease |
| Terminal block | screw and lever push type (spring loaded) |
| Ambient temperature | Basic actuator : -20℃ ~ +70℃ except for ATM0020 : -10℃ ~ +65℃ c/w control option : -10℃ ~ +60℃ |
| Ambient humidity | 90%RH Max (Non-condensing) |
| Anti vibration | XYZ 10g. 02 ~ 34 Hz, 30 minutes |
| External coating | Dry powder (Polyester), Blue Color, Munsell No. B-0188 |
Options Available – Mechanical
| Symbol | Description | Remark |
|---|---|---|
| EX | Explosion proof (Exd IIB T4) / Approved by KTL | Except for ATM0020/0040/0080 |
| WT | Watertight (IP68), Temporary submersible / 10M Head 1000 hours | Except for ATM0020/0040/0080 |
| ALS | Auxiliary limit switches (Max 2 for each travel end) | Except for ATM0020/0040 |
| ATS | Auxiliary torque switches (Max 2 for each travel end) | Except for ATM0020/0040/0080/0100 |
| EXT | Extended travel angle (up to 120˚, 135˚, 180˚, 270˚) | Except for ATM with Large ATM-Series |
| SV | Variation in torque and operating speed | Please consult before ordering |
Options Available – Remote Monitoring and Control
| PK | Potentiometer Kit (output signal: 0~1kohm). High resolution potentiometer and precisely machined gearing are directly engaged with drive shaft to feedback continuous position of valve. |
| CT | Current Transmitter (output signal: 4~20mA). Zero/Span Adjustment. Convertible DIP switch (4 wire to 2 wire). |
| RPC / Signal Config | Remote Position Controller (by input and output signal). Input: 4~20mA, 0~10VDC, 2~10VDC, 1~5VDC, 0~5VDC. Output: 4~20mA, 0~10VDC, 2~10VDC, 1~5VDC, 0~5VDC. Auto calibration. Reverse operating direction. |
Options Available – Local Control (LP4 / LM4)
| LP4 / LM4 | LP4 for 1 & 3Phase (ATM0160~9000). Control power: Free Voltage (85~265VAC) 50/60Hz, Option: 24VDC. Magnetic selector switches, SMPS: Open/Close & Local/Stop/Remote. Local lamp indication. LM4 for 3 Phase (ATM0160~9000): including the same function as LP4. Reversing electric contactors, Transformer. |
Options Available – Local Control (ICM1 / ICM2 / ICM3)
| ICM1 | ICM1 for 1 & 3 Phase (Integral Control Module) (ATM0160~9000). Main Power: 3Ph 220V/380/440VAC, 1Ph 110V/220VAC. Control Power: 24VDC, 5VDC. Magnetic selector switches, Reversing electric contactors, Transformer, Phase Detector. |
| ICM2 | ICM2 for 1 & 3 Phase (Integral with LCD Display) (ATM0160~9000). Including the same function as ICM1. Auto-Phase Discriminator, LCD Display. Options: CT, RPC (Modulating), Explosion proof, IP68, Bus Communication. |
| ICM3 | ICM3 for 1 & 3 Phase (Integral with LCD Display/IP68 Enclosure) (ATM0160~9000). Including the same function as ICM2. IP68, Explosion proof, RPC (Modulating), Bus Communication. 34-pin separate compartment for terminal block. |
Options Available – Fail Safety (BP)
| BP | BP for 1 Phase (ATM0160~9000). Rechargeable Battery back up – Fail Safe function. When main power is alive, actuator works normally. Once power fails, actuator moves to pre-set fail safe position. Input power: Free Voltage (85~265VAC) 50/60Hz. Output contacts: Open/Close/Alarm relay. LED signal indication: 4 LEDs. Rechargeable battery: 2.0 AH 27.5 VDC (Ni-Cd). |

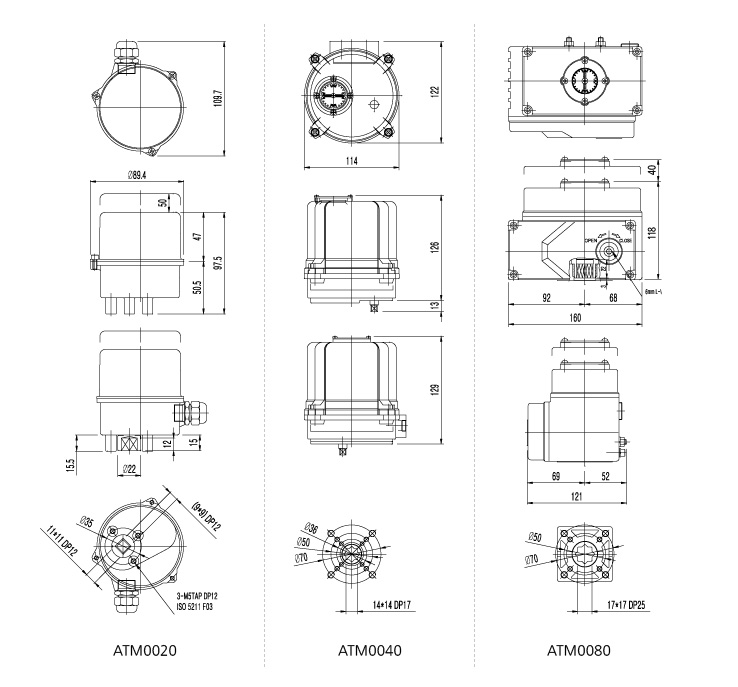

Dimension
* Unit : mm. *O : Installed inside of actuator *X : Not available *Z : Height of basic actuator
| RPC | CT | BP | LP4/LM4/ICM1/ICM2 | LD2 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X | Y | Z | X | Y | Z | X | Y | Z | X | Y | Z | X | Y | Z | |
| ATM0100 | 340 | 190 | 245 | 316 | 172 | 245 | 396 | 172 | 245 | X | X | ||||
| ATM0160/0240 | ○ | ○ | 475 | 229 | 259 | 499 | 229 | 259 | 517 | 284 | 259 | ||||
| ATM0350/0500 | ○ | ○ | 494 | 244 | 288 | 518 | 244 | 288 | 536 | 284 | 288 | ||||
| ATM0800/1100 | ○ | ○ | X | 541 | 284 | 313 | 559 | 284 | 313 | ||||||
| ATM2000/3000 | ○ | ○ | X | 600 | 375 | 385 | 620 | 375 | 385 | ||||||
| ATM6000/9000 | ○ | ○ | X | 677 | 417 | 668 | 697 | 417 | 668 | ||||||
